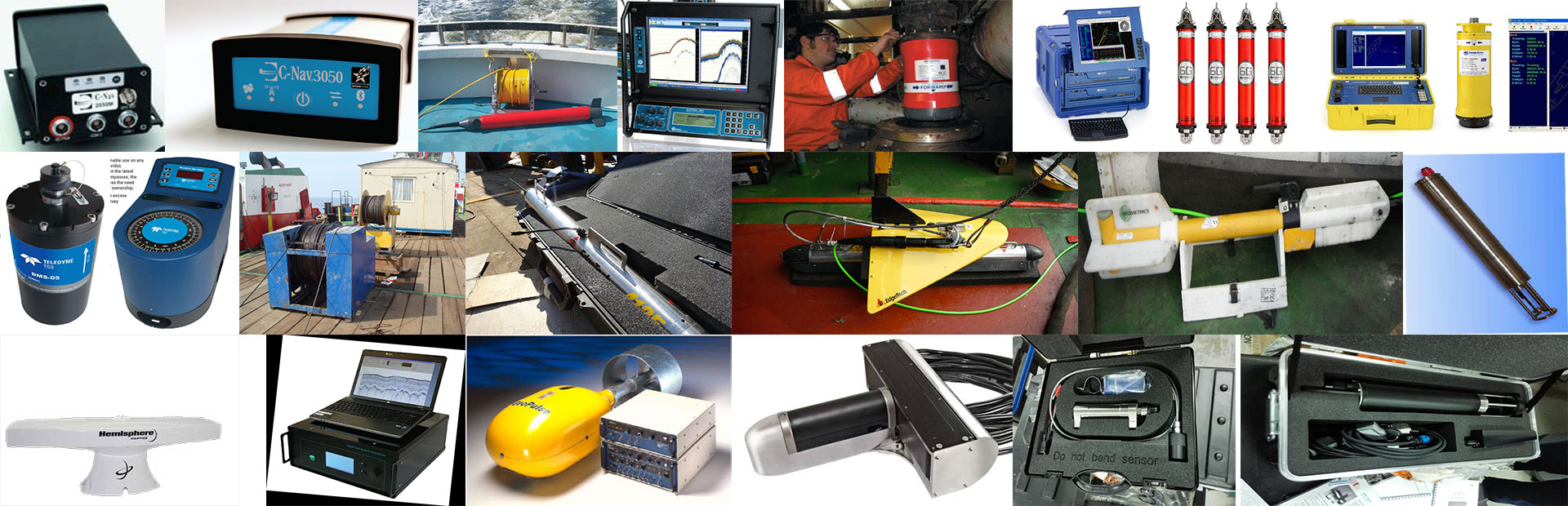

Geophysics Survey Equipment

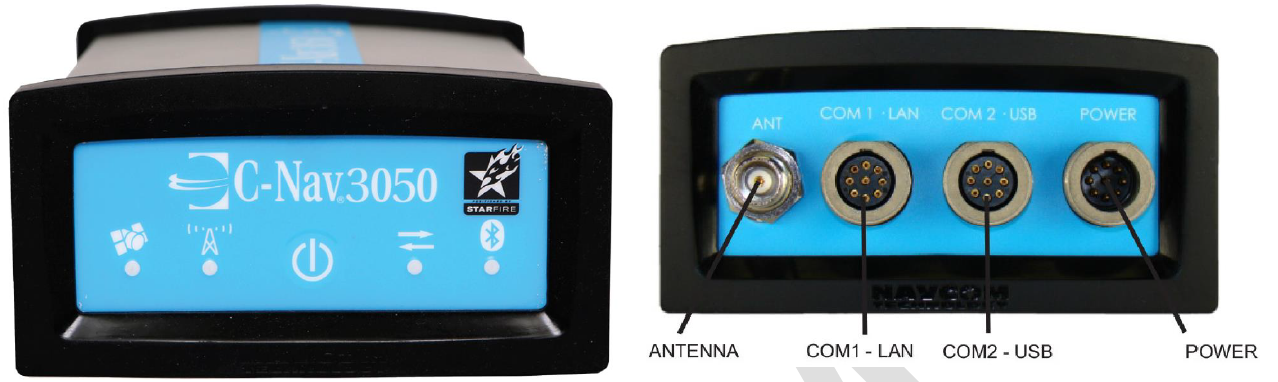

C-Nav-3050
Description:
The C-Nav 3050 is a versatile GNSS receiver that supports multi-constellation tracking, including GPS and GLONASS, with a focus on high-sensitivity performance in challenging environments.
Key Features:
66-channel tracking with SBAS support for enhanced accuracy
Built-in L-Band receiver for C-Nav corrections over the internet
Fast signal acquisition and superior interference suppression
Configurable as a real-time kinematic (RTK) base or rover
Physical Specs:
Dimensions: 6.47 in x 4.60 in x 2.37 in (164 mm x 117 mm x 60 mm)
Weight: 1.1 lb (0.5 kg)
Operating Temperature: -40°F to 158°F (-40°C to 70°C)
Power Supply: AC/DC adapter with a nominal input of 12 VDC

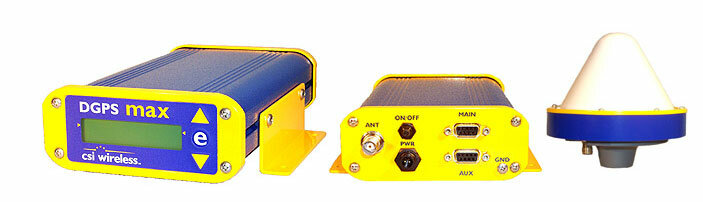

Csi Wireless DGPS Max
Description:
The csi wireless DGPS Max provides sub-meter GPS positioning capabilities, integrating multiple signal sources for enhanced reliability.
Key Features:
Automatic dual-channel SBAS tracking for improved reception reliability
Sub-meter positioning at rates of up to 5 Hz
Physical Specs:
Operating Temperature Range: -32°C to +74°C (-25°F to +165°F)

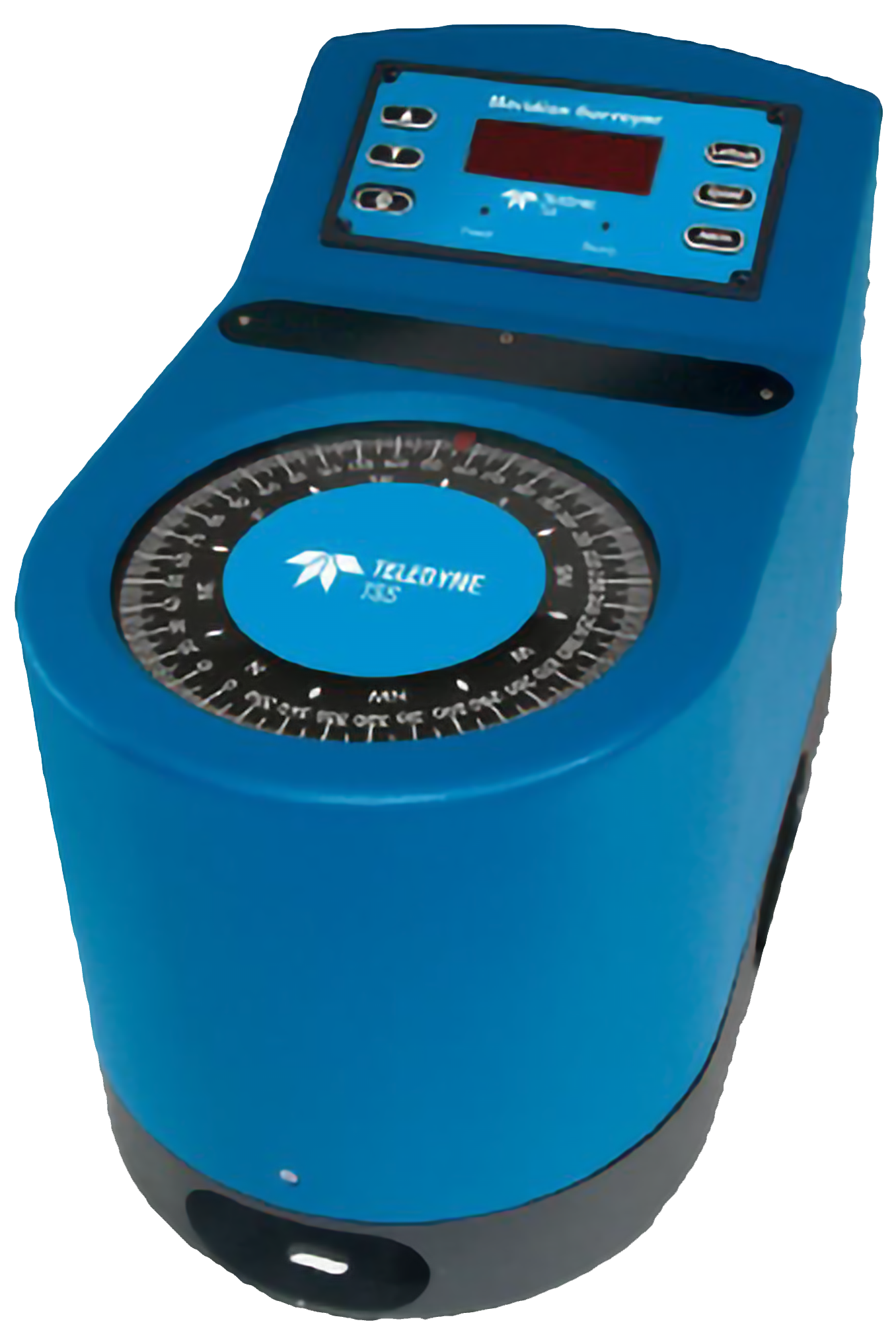

Meridian Surveyor Gyrocompass
Description:
The Meridian Surveyor Gyrocompass provides accurate heading information essential for navigation and positioning in marine applications.
Key Features:
High precision heading determination with minimal drift
Robust design suitable for harsh marine environments
Fast response time and reliable performance
Physical Specs:
Dimensions: Standard size for easy installation
Weight: Varies based on configuration
Operating Temperature: -30°C to +70°C

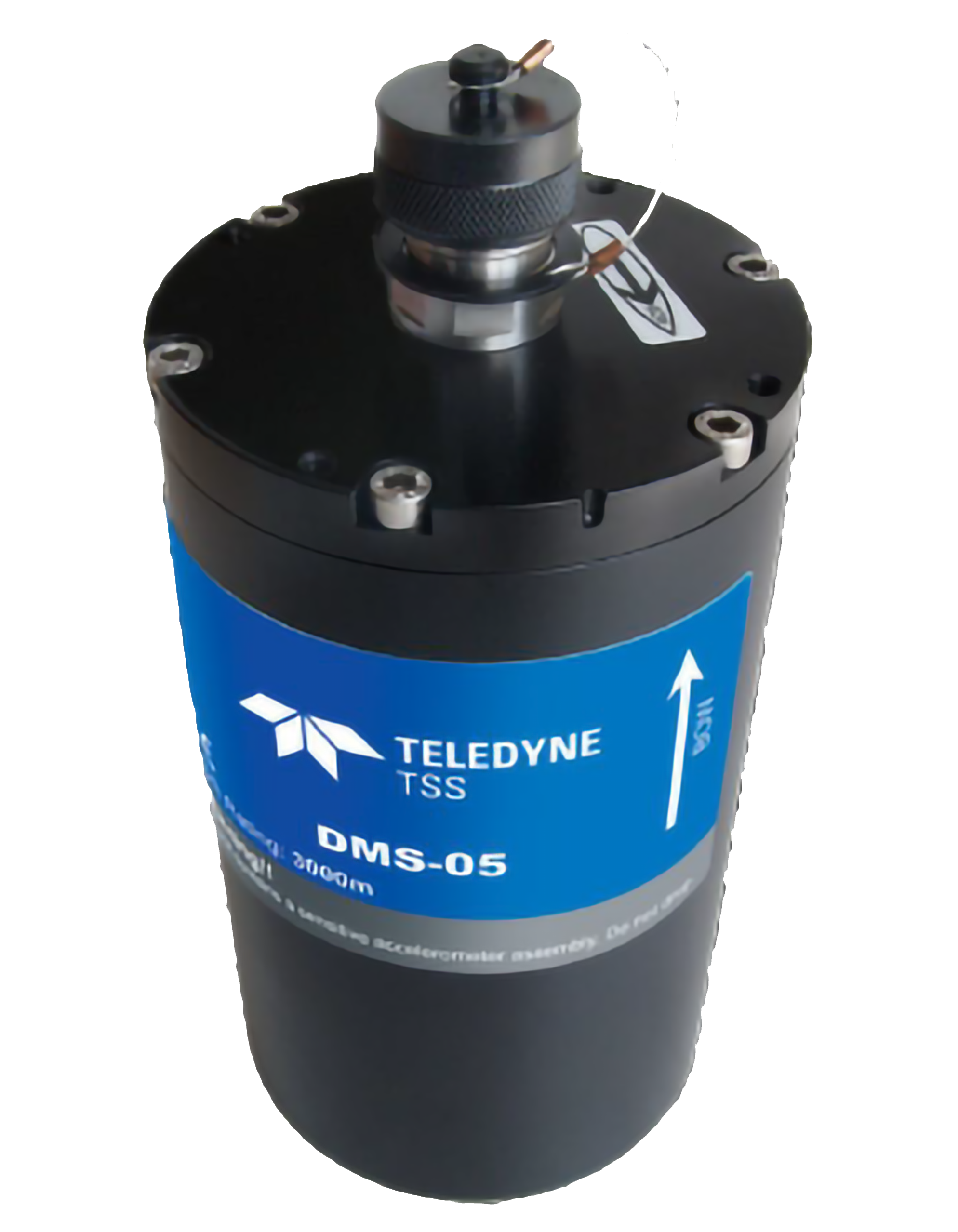

DMS-05 Dynamic Motion Sensor
Description:
The DMS-05 Dynamic Motion Sensor is designed to measure vessel motion, providing critical data for navigation and stability assessments.
Key Features:
Measures roll, pitch, and heave with high accuracy
Integrated data logging capabilities
Compact design for easy installation on various vessels
Physical Specs:
Dimensions: Small form factor suitable for tight spaces
Weight: Lightweight for ease of use
Operating Temperature: -20°C to +60°C
Edge Tech 4200 Side Scan Sonar
Description:
The Edge Tech 4200 Side Scan Sonar system is designed for underwater imaging, providing high-resolution sonar images of the seafloor.
Key Features:
Dual-frequency operation (100/400 kHz) for versatile imaging capabilities
Real-time display of sonar images during surveys
Lightweight and portable design suitable for various platforms
Physical Specs:
Dimensions: Compact design suitable for deployment
Weight: Lightweight construction
Operating Temperature: -10°C to +50°C

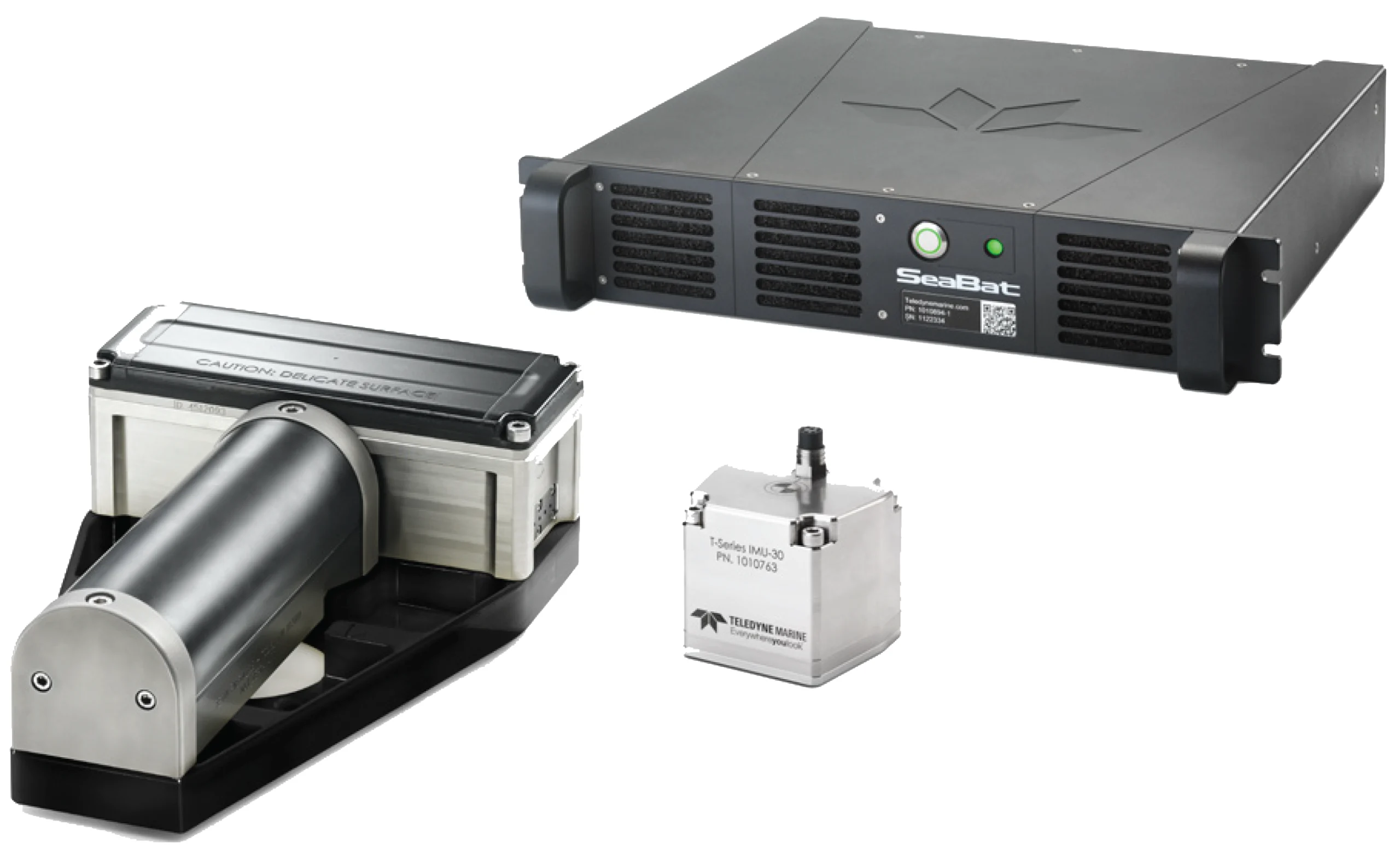

Reson SeaBat T20R MultiBeam Echosounder
Description:
The SeaBat T20-R is a high-resolution multibeam echosounder designed for shallow water applications, providing detailed bathymetric data with a focus on high accuracy and efficiency.
Key Features:
Dual frequency operation (200/400 kHz) for versatile applications
High resolution and accuracy in shallow waters
Integrated GNSS positioning for precise location data
User-friendly interface with real-time data visualization
Physical Specs:
Dimensions: Compact design for easy deployment
Weight: Lightweight for portability
Operating Temperature: -10°C to +50°C

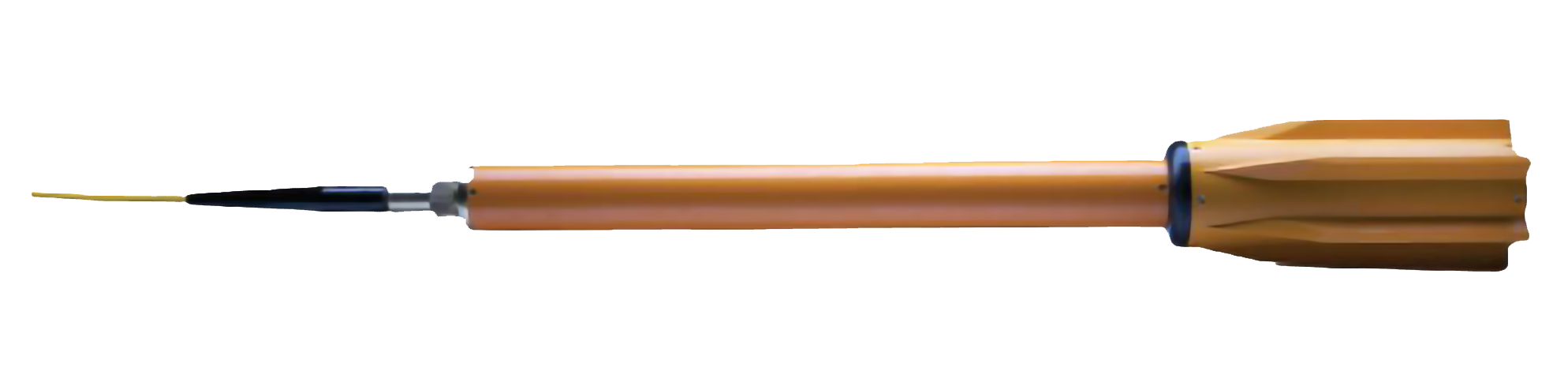

SeaSPY2 Marine Magnetometer
Description:
The SeaSPY2 Marine Magnetometer is designed to detect magnetic anomalies in marine environments, useful in geological surveys and archaeological investigations.
Key Features:
High sensitivity magnetometer capable of detecting subtle changes in the magnetic field
Integrated GPS positioning capabilities
Rugged construction suitable for marine conditions
Physical Specs:
Dimensions: Compact form factor suitable for deployment
Weight: Lightweight design
Operating Temperature: -10°C to +50°C

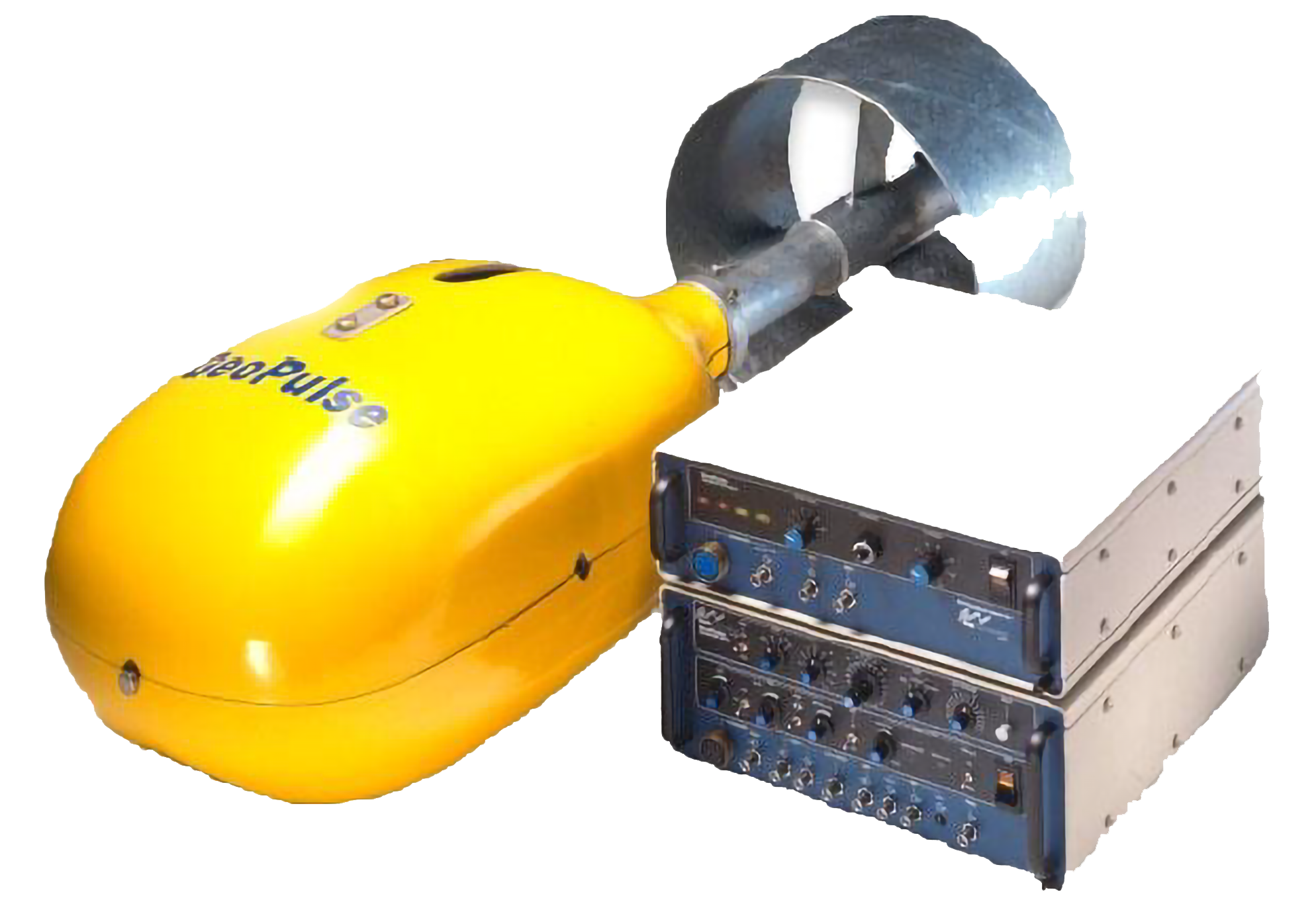

Profiler GeoPulse Towed Sub-Bottom
Description:
The GeoPulse Towed Sub-Bottom Profiler uses acoustic signals to penetrate the seafloor, providing detailed sub-bottom imaging.
Key Features:
High-resolution sub-bottom profiling capabilities
Towed configuration allows flexibility in deployment
Real-time imaging during surveys
Physical Specs:
Dimensions: Standard size suitable for towing operations
Weight: Varies based on configuration
Operating Temperature: -10°C to +50°C

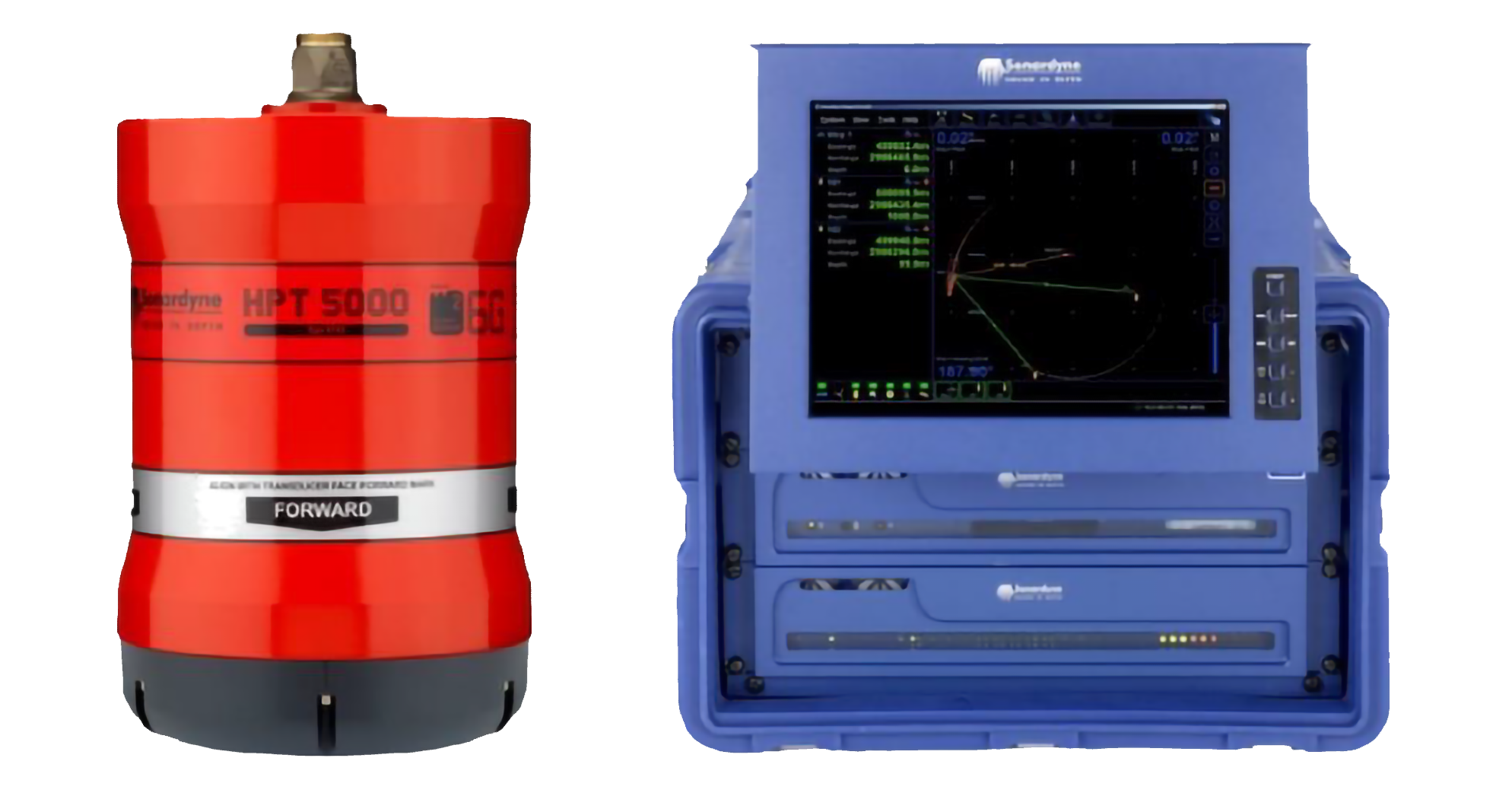

Marksman USBL
Description:
The Marksman USBL system offers reliable underwater positioning solutions using ultra-short baseline technology.
Key Features:
– Accurate positioning in challenging underwater environments
– Integrated data logging capabilities
– User-friendly software interface
Physical Specs:
– Dimensions vary based on configuration
– Weight varies depending on setup
– Operating Temperature range from -10°C to +50°C
